ADVANCED GLEEBLE TOUCH CONTROL SYSTEM

Expand What Your Gleeble Can Do

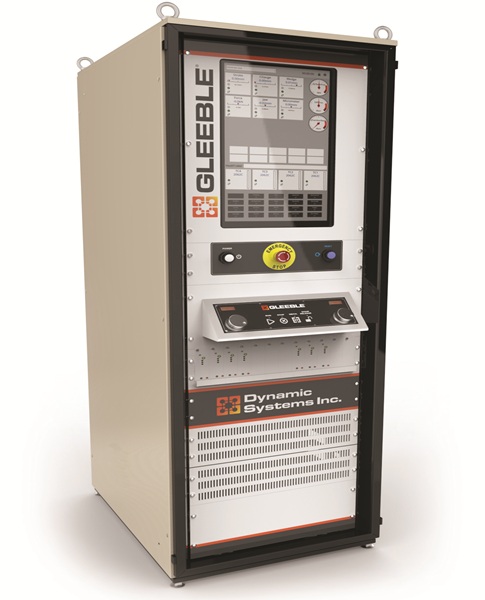

The Gleeble Touch Control (GTC) console delivers advanced system control — a fully modernized, touchscreen-driven interface replacing legacy hardware on Gleeble 3500 and 3800 platforms. Designed for materials testing labs that demand precision, speed, and repeatability without compromise.

WHAT IS THE GTC CONSOLE?
An Advanced Gleeble System Control Interface

Materials testing labs operating Gleeble 3500 and 3800 systems face a familiar challenge: aging control hardware that was state-of-the-art at installation no longer reflects the throughput, data quality, or operator experience that modern metallurgical and thermo-mechanical research demands. Obsolete master circuit boards, rack-mounted industrial PCs, and opaque panel interfaces introduce unnecessary risk — in the form of configuration errors, calibration oversights, and productivity bottlenecks that erode lab efficiency over time.

The Gleeble Touch Control (GTC) console is a purpose-built system upgrade that addresses every one of these pain points. Developed with direct input from Gleeble users around the world, the GTC replaces legacy hardware with a configurable touchscreen display, a new modular Instrument Control Module (ICM), and an intuitive dual-mode interface that puts the right data in front of operators at exactly the right moment.

The result: reduced user error, faster operator training, higher test throughput, and a future-proof, modular expandable control system that grows with your laboratory's needs — all while maintaining full backward compatibility with your existing Gleeble 3000 Series transducers, accessories, and software.

Configurable Touchscreen Display

A large, high-resolution touchscreen replaces the legacy panel interface. The Gleeble GTC touchscreen display configuration supports two distinct modes:

• Configuration Mode — set up tests, review accessories, and confirm settings with visual feedback before every run
• Run Mode — displays only the real-time data and controls relevant during active testing
• Large icons and clear device descriptions reduce operator cognitive load
• Wireless LAN access reduces bench clutter

Gleeble Instrument Control Module (ICM)

The new Gleeble Instrument Control Module replaces the obsolete Toro Board with a powerful, expandable solution that delivers measurably improved control and data acquisition performance.

• 8 digital Input/Output (I/O) channels per module
• 4 analog input channels per module
• Additional ICM modules available for future lab expansion
• Easier PID tuning reduces calibration complexity
• Enhanced diagnostics and logging for proactive service

Redesigned Virtual Panel Meters

Completely redesigned Virtual Panel Meters (VPMs) deliver intuitive, at-a-glance data presentation that eliminates misinterpretation during critical test phases:

• Real-time data with operating range indicators side-by-side
• Transducer status and values clearly displayed (both relative and acquired)
• Calibration reminders — system tracks and notifies of upcoming requirements automatically
• Reduced user error through contextual visual confirmation

Faster Training & Accelerated Workflow

Operator proficiency is one of the largest hidden costs in any materials testing laboratory. The GTC is designed to eliminate the steep learning curve associated with legacy Gleeble interfaces:

• Both new and experienced Gleeble users reach full proficiency rapidly
• Typical GTC installation: 2 days hardware; 1–2 days additional training
• Minimal downtime — installations designed to get labs back online fast
• Familiar QuikSim2 and Origin software carry forward — no retraining on analysis tools

Modular & Expandable Control System

The Gleeble modular expandable control system architecture is designed for the long term. Unlike the fixed-function legacy hardware it replaces, the GTC grows with your laboratory:

• Modular ICM design allows incremental expansion without full system replacement
• Supports future accessories and measurement systems as they become available
• Embedded 1.5 GHz Intel® Core™ i7 dual-core CPU boots from CFast flash — no rotating hard drive failures
• Data stored in standard Windows® folders for easy access, archiving, and backup

Backward Compatible — Protect Your Investment

Existing Gleeble 3000 Series users can upgrade to GTC without abandoning their current infrastructure:

• Full compatibility with current Gleeble transducers
• All existing Gleeble accessories supported
• QuikSim2 and Origin Data Analysis software continue unchanged
• Wireless access to Gleeble LAN reduces physical cable clutter in the test environment
• Configuration feedback confirms expected setups and reduces pre-test errors
