What Is Compression Testing?

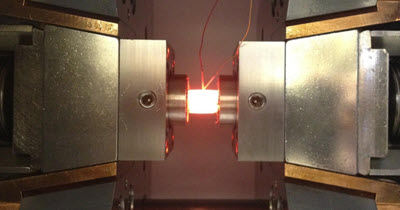

Compression testing is a fundamental mechanical characterization method in which a material specimen is subjected to controlled uniaxial compressive force between two platens, allowing researchers to observe deformation behavior, determine yield strength, and characterize flow stress under precise conditions. As the specimen deforms, applied force and displacement are recorded continuously, producing flow stress curves that represent the material's mechanical response across temperature and strain rate regimes.

Unlike tensile testing, compression testing captures the material behavior most relevant to bulk forming operations — forging, rolling, and extrusion — where material is shaped under compressive load rather than pulled apart. When combined with the Gleeble's thermal simulation capability, compression testing replicates the exact thermo-mechanical history a material experiences during industrial processing, generating data that reflects real microstructural conditions rather than idealized laboratory specimens.

For materials used in high-performance applications — aerospace forgings, automotive sheet, pipeline steels, or superalloy turbine components — this data determines whether a forming process will produce acceptable microstructure and properties. Standard compression frames cannot reproduce the thermal cycles that govern recrystallization, grain growth, and phase transformation during hot working. The Gleeble can.

Pain Points We Solve


• Ambient-only flow stress data that fails in FEM models — the Gleeble tests across the full temperature and strain rate range your process demands
• Multiple instruments for one forming study — the Gleeble performs compression, tensile, weld simulation, dilatometry, and more on a single configurable platform
• Constitutive models built on incomplete or mismatched data — the Gleeble generates the flow stress and dynamic recrystallization data needed to populate high-fidelity simulation inputs
• Off-the-shelf instruments that don't reflect your process conditions — every Gleeble system is individually configured to your specific materials, deformation protocols, and laboratory environment
• Inability to isolate hot working windows without expensive production trials — Gleeble compression testing identifies optimal temperature and strain rate combinations directly from small laboratory specimens

Comprehensive Compression Property Characterization

This dataset captures material behavior under compressive loading across the full range of processing-relevant conditions. Flow stress and strain rate sensitivity define material response across deformation regimes, supporting constitutive modeling — including Johnson-Cook, Zener-Hollomon, and Arrhenius formulations — for use in forming simulation packages. Hot working windows identify optimal temperature and strain rate combinations for industrial forming operations, reducing trial-and-error on production equipment.

Dynamic recrystallization behavior and microstructural evolution data quantify grain refinement mechanisms and predict final mechanical properties based on processing parameters. Yield strength and elastic modulus under compressive loading characterize onset of plastic deformation and material stiffness across temperature ranges. Barreling behavior, friction characterization, and specimen geometry response inform test design and data correction protocols. Finally, alloy comparison datasets — generated from small sample volumes under identical controlled conditions — accelerate experimental composition screening and new alloy qualification.
