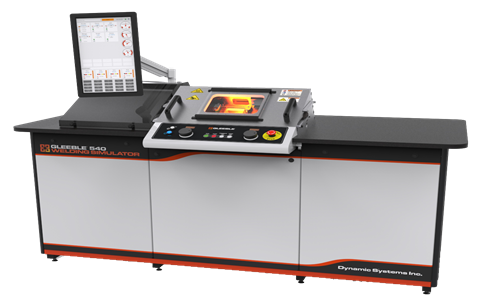

GLEEBLE 540: WELDING SIMULATOR

The Dedicated Welding Simulation System for Weld HAZ Studies and Thermal Cycle Testing

The Gleeble 540 Welding Simulator® is a purpose-built physical simulation system exclusively designed for welding research, weld HAZ thermal cycle simulation, heat treating, and high-temperature materials testing. The origins of the Gleeble trace back to World War II, when the rapid mass production of Liberty Ships using arc welding replaced traditional riveting methods. While welding enabled unprecedented manufacturing speed, unexpected structural failures—including ships fracturing while docked—revealed critical weaknesses in the weld Heat-Affected Zone (HAZ). These failures sparked intensive post-war research into weld metallurgy and the need for precise thermal cycle simulation.

In response, the creators of the Gleeble envisioned a laboratory-scale system capable of accurately reproducing welding thermal cycles under controlled conditions. The first “Gleeble,” named by Doc Savage, used resistance heating powered by a welding transformer to deliver high power input with precise temperature measurement—allowing researchers to generate realistic HAZ microstructures for mechanical testing and metallurgical analysis.

Today, the Gleeble 540 Welding Simulator carries that legacy forward. Purpose-built exclusively for welding engineers, metallurgists, and materials scientists, it delivers ultra-rapid heating and cooling rates up to 10,000°C per second to replicate the extreme thermal conditions of resistance welding, arc welding, laser welding, and friction stir welding.

Unlike general-purpose thermo-mechanical systems, every aspect of the Gleeble 540 is optimized for weld HAZ simulation. It enables organizations to predict microstructure evolution, mechanical properties, and cracking susceptibility before the first production weld is made—reducing development time, minimizing costly trial-and-error testing, and preventing field failures.

Welding Studies & Weld HAZ Simulation

Replicate actual resistance, arc, laser, electron beam, and friction stir welding thermal cycles with extreme accuracy

Hot Tensile Testing

Evaluate material ductility across the HAZ temperature range to predict hot cracking susceptibility

Strain Induced Crack Opening (SICO)

Quantify weld solidification cracking resistance through controlled strain application during critical temperature ranges

Nil-Strength Temperature (NST) Determination

Identify the temperature at which material strength approaches zero during solidification—fundamental to understanding weld cracking

Quenching Studies

Multiple quenching media (water, air, gas, mist) enable comprehensive cooling rate simulation matching real weld conditions

Heat Treating Simulation

Optimize post-weld heat treatment cycles and predict microstructure evolution

Melting & Solidification

Study weld pool solidification behavior with 1,700°C maximum temperature capability

Continuous Casting Simulation

Replicate thermal cycles in steel continuous casting operations

Mushy Zone Processing

Investigate semi-solid metal behavior critical to advanced casting processes

Stress Relaxation

Predict residual stress evolution during post-weld heat treatment

Recrystallization & Grain Growth

Control HAZ grain size and understand grain coarsening phenomena
