NIL STRENGTH TESTING FOR MODERN MATERIALS

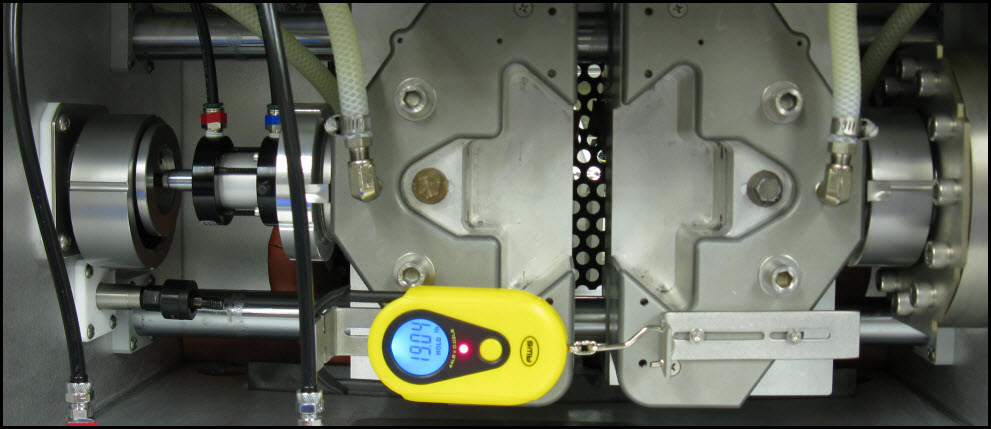

What Is Nil Strength Testing?
Nil Strength Temperature (NST) testing determines the precise temperature at which a material loses all mechanical strength due to the onset of grain boundary melting. As a specimen is heated under a small, constant tensile load, the temperature at which it fractures under that minimal force is recorded — marking the point where grain boundaries have melted sufficiently that the material can no longer sustain any load.

This temperature defines the upper boundary of the High-Temperature Brittleness Range (HTBR) — the critical interval between the NST and the Ductility Recovery Temperature (DRT) within which a material is most susceptible to hot cracking. For welding engineers, casting metallurgists, and alloy developers, the width and position of this range determines whether a material can be processed without defect formation. A narrow HTBR indicates resistance to hot cracking; a wide one signals elevated risk during welding, continuous casting, or high-temperature forming. Without NST measurement, this boundary is unknown — and process windows are defined by assumption rather than data.

For steels, nickel superalloys, aluminum alloys, and other materials where hot cracking susceptibility governs weldability and castability, NST testing is not supplementary characterization — it is the measurement that defines the upper limit of safe processing temperature.

Pain Points We Solve


• Hot cracking during welding or casting with no quantitative basis for root cause — NST testing defines the HTBR and identifies whether process temperatures are encroaching on the grain boundary melting range
• Weld procedure development based on empirical trial-and-error — Gleeble NST testing characterizes HAZ liquation cracking susceptibility from small specimens before committing to full procedure qualification trials
• No defined upper temperature limit for hot working operations — NST data establishes the precise boundary beyond which material strength drops to zero, preventing catastrophic forming failures
• Alloy development slowed by incomplete high-temperature characterization — the Gleeble quantifies how compositional changes affect NST and HTBR width from laboratory-scale samples
• Incomplete hot ductility datasets lacking the upper boundary — NST integrates directly with Gleeble ductility testing to deliver complete on-heating characterization in a single test campaign

Comprehensive Nil Strength Property Characterization

This type of testing data captures material behavior at the upper boundary of high-temperature mechanical response. The Nil Strength Temperature (NST) defines the onset of grain boundary melting and establishes the upper limit of safe processing temperature for welding, casting, and forming operations. Combined with the Ductility Recovery Temperature (DRT) from hot ductility testing, the NST determines the full width and position of the High-Temperature Brittleness Range (HTBR) — the primary quantitative indicator of hot cracking susceptibility.

HAZ liquation cracking susceptibility assessment, derived from NST in combination with on-heating ductility curves, supports weld procedure qualification and filler metal selection across alloy systems. Upper forming temperature limits established from NST data define safe process windows for forging, rolling, and extrusion operations where overheating risks incipient melting damage. Alloy composition effects on NST — including the influence of residual elements, microalloying additions, and heat treatment on grain boundary melting behavior — are quantified to guide alloy design and material selection decisions.
