GLEEBLE 500 SERIES: PRECISION THERMO-MECHANICAL SIMULATORS FOR MATERIALS TESTING EXCELLENCE

Industry-leading thermo-mechanical physical simulation systems engineered for researchers and manufacturers who demand accurate, repeatable materials testing

From weld HAZ thermal cycle simulation to strip annealing and comprehensive thermo-mechanical simulation, the Gleeble 500 Series delivers unparalleled performance.

The Gleeble 500 Series represents the evolution of materials testing technology. Originally created as a weld HAZ thermal cycle simulation system, this product line has developed into a comprehensive suite of purpose-built systems covering a multitude of materials testing applications. Each system in the 500 Series delivers precise thermo-mechanical physical simulation capabilities, enabling manufacturers and researchers to validate material performance before committing to full-scale production.

Whether you need to simulate welding processes, conduct strip annealing research, or perform complex thermo-mechanical testing, the Gleeble Systems 500 Series provides the accuracy, repeatability, and flexibility that modern materials science demands.

OPTIMIZE MATERIALS TESTING WITH GLEEBLE 500 SERIES

Get precise, repeatable results for weld simulation, annealing, and advanced thermo-mechanical testing. Connect with our experts to find the right 500 Series system for your application and accelerate development with confidence.

CHOOSE YOUR PERFECT TESTING SOLUTION

Each Gleeble 500 Series system is engineered for specific materials testing applications with optimized specifications and capabilities.

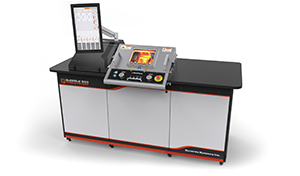

GLEEBLE 563

Thermo-Mechanical Simulator
Max Temperature 1,700°C
Max Heating Rate 10,000°C/sec
Max Force 3 Metric Tons
Max Stroke 100 mm
Max Specimen Size 11 mm sq

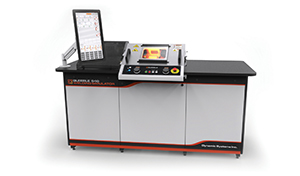

GLEEBLE 540

Welding Simulator
Max Temperature 1,700°C
Max Heating Rate 10,000°C/sec
Max Force 3 Metric Tons
Max Stroke 100 mm
Max Specimen Size 11 mm sq

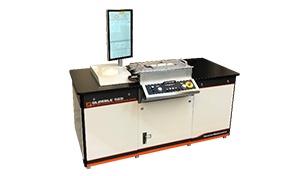

GLEEBLE 525

Annealing Simulator
Max Temperature 1,000°C
Max Heating Rate 50°C/sec
Max Stroke 50.8 mm
Max Quenching Rate 57°C/sec
Max Specimen Size 50 x 260 mm

Specifications	Gleeble 563 TMS	Gleeble 540 Welding Simulator	Gleeble 525 Annealing Simulator
Force Capacity
Maximum Compressive Force	3 Metric Tons	3 Metric Tons	N/A
Maximum Tensile Force	3 Metric Tons	3 Metric Tons	N/A
Stroke Performance
Maximum Stroke Distance	100 mm	100 mm	50.8 mm
Maximum Stroke Rate	200 mm/sec	200 mm/sec	N/A
Minimum Stroke Rate	0.01 mm/sec	0.01 mm/sec	N/A
Temperature Control
Maximum Temperature*	1,700 °C	1,700 °C	1,000 °C
Maximum Heating Rate	10,000 °C/sec	10,000 °C/sec	50 °C/sec
Maximum Quenching Rate*	10,000 °C/sec	10,000 °C/sec	57 °C/sec
Specimen Capacity
Maximum Specimen Size	11 mm square	11 mm square	50X260 mm diameter

READY TO TRANSFORM YOUR MATERIALS TESTING?

Discover how Gleeble 500 Series thermo-mechanical simulators can accelerate your research, reduce development costs, and ensure manufacturing success. Our materials testing experts are ready to discuss your specific application requirements.
